Windows 10: Windows 10 and Linux can only be booted from .EFI files in boot options menu

Recently I installed Zorin OS which is Ubuntu based on my 2014 HP Envy laptop, and although the BIOS was set to "Legacy", the linux install required the creation an efi partition. After this process, my laptop was only able to boot to a screen saying "No bootable device - Insert boot disk and press any key", and when I tried to change BIOS to UEFI, the massage became "Selected boot image not authenticate".



I've already done some stuff making use of diskpart from a bootable Windows 10 usb drive, but still, the only way that makes the boot poossible is going to the Boot options menu pressing F9 after turning it on, and then selecting "Boot from EFI file" and selecting bootx64.efi.



Is there any way I can create a boot menu that selects the OS directly from EFI files?



Thanks in advance.

submitted by /u/leonardovallem
[link] [comments]

:)



UEFI boot options disappeared from BIOS; now getting reboot and select proper boot device

In short, I need to get the system/BIOS to allow UEFI booting of the SSD.

Computer started up today with default BIOS settings.

• Only SSD 1(Windows boot) and SSD 2 were listed in BIOS; HDD 1 and HDD 2 were not visible
• System would not boot. Gave the 'reboot and select proper boot device' message
• Boot menu has no UEFI/EFI (or Windows Boot Manager) entries anymore

I went into Partition Magic/Gparted and confirmed :

• All drives are still showing
• All drives' data is in tact [EFI volume/partition is still listed (and can be browsed/files accessible)]

Gparted print out (note dev/sda2 apparently that is normal behavior) :

/dev/sda1 (locked) EFI System Partition--Fat32--/media/sda1--100.00mb--46.81MiB--53.19MiB--boot,esp
/dev/sda2 (exclamation mark) Microsoft reserved partition--unknown file system--no mount point--128.00MiB--unused spaced--msftres
/dev/sda3 basic data partition--ntfs--/media/sda3--118.58GiB--70.78GiB--47.80GiB--msftdata
/dev/sda4--ntfs--/media/sda4--450.00MiB--327.71MiB--122.29MiB--hidden,diag



As I am able to boot Windows installation from USB, I tried the standard startup repair. It said it was not able to fix any problems.

Next I tried to repair the EFI with Diskpart in the shell:

• sel vol 1 (note that Diskpart states EFI partition is 'hidden')
• assign letter=z:
• cd /d z:\EFI\Microsoft\Boot\
• bootrec /fixboot
• bcdboot c:\Windows /l en-us /s vz /f ALL

It completed all tasks successfully. Unfortunately that did not work.

Other things I have tried :

• Removing CMOS battery and replacing with a new one - my HDD started showing up again after doing this.
• Using the old MBR commands(in hopes it would force the Windows startup repair to recognize and fix a problem)

bootrec /fixmbr
bootrec /fixboot
bootrec /scanos
bootrec /rebuildbcd​

• Loaded BIOS 'optimized'/defaults (the system did this already once before, hence why I am in this situation, though doing it manually seemed like an option worth trying. Note that after doing this and restarting the system, HDD's stopped showing again)
• Removed new CMOS battery and left it out of the system for thirty minutes
• Formatted EFI and msftres partitions, then rebuilt the EFI boot records

In summary, am looking to force the BIOS to see the EFI partition on the SSD boot drive, as it is not an option any longer.



Can't disable UEFI boot on HP 250 G3

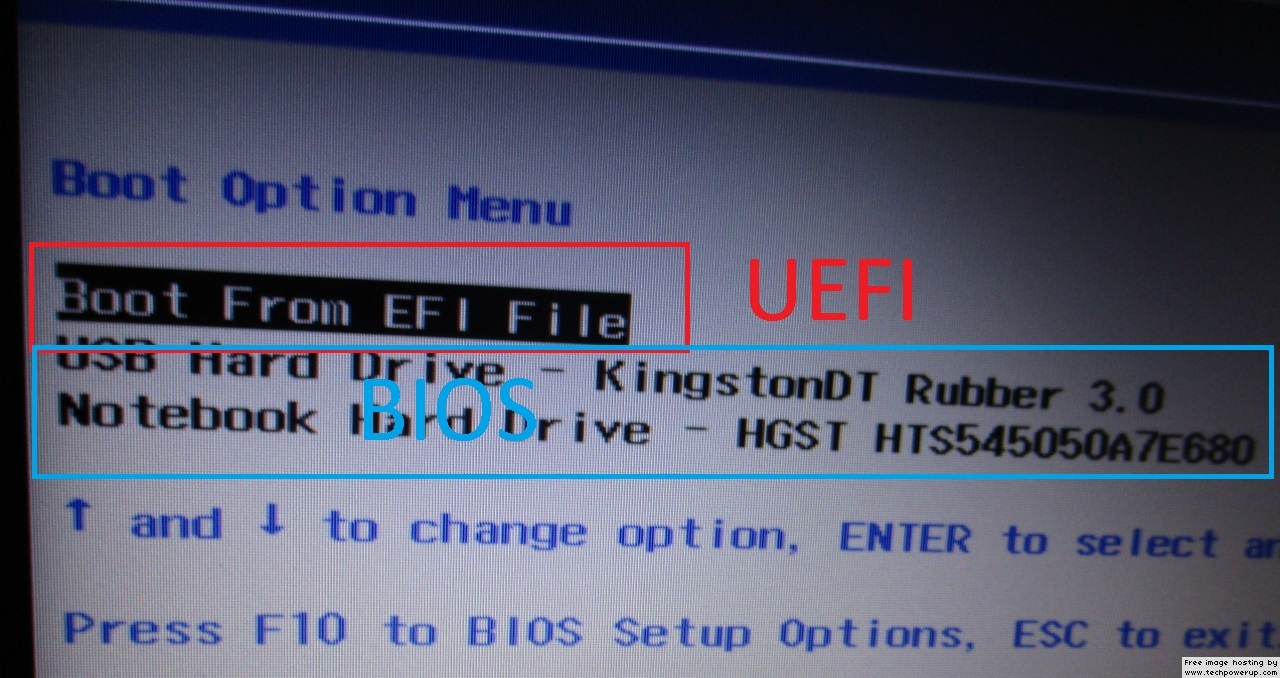

I got it, I was not accustomed to UEFI (because on HP 4540s I disabled it) and I automatically thought that if I boot from the first menu it will boot in UEFI mode, but I have to go to second menu "Boot From EFI File" to get a list of EFI boot options:



I installed Ubuntu Mate and Windows 8.1 from the first menu (the picture) and they both installed in BIOS mode. Quite simple really.



Can't disable UEFI boot on HP 250 G3

I am really interested in this. I could not install Linux and I don't know why. Was it so simple to install it? The linux I want to install is elementary OS, but I can install other one. How can I do it? Thanks!
