Windows 10: Windows 10 upgrade from 1909 to 20H2 fails with error 0x8007001F

Hello support community,


the problem is essentially the same like in this topic however that one was closed unsolved:

Please help: Trying to upgrade to Win 10 Pro 20.04 repeatedly - Microsoft Community


Error:

...

2020-12-25 13:30:53, Error [SetupHost.exe] IOCTL_STORAGE_QUERY_PROPERTY failed: 0x1

2020-12-25 13:30:53, Error [SetupHost.exe] IOCTL_STORAGE_QUERY_PROPERTY failed: 0x1

2020-12-25 13:31:03, Error SP CSaveConfigData:oExecute: Failed to write the OS pieces to the C:\$WINDOWS.~BT\Sources\SetupPlatform.ini config file. Error: 0x8007001F[gle=0x0000001f]

2020-12-25 13:31:03, Error SP Operation failed: Save config data. Error: 0x8007001F[gle=0x000000b7]

2020-12-25 13:31:03, Error SP ExecuteOperations: Failed execution phase Downlevel. Error: 0x8007001F

2020-12-25 13:31:03, Error MOUPG MoSetupPlatform: ExecuteCurrentOperations reported failure!

...

OneDrive link to error logs

There are no rollback logs


Mainboard:

GA-Z97X-Gaming 5 rev. 1.0 Overview Motherboard - GIGABYTE Global

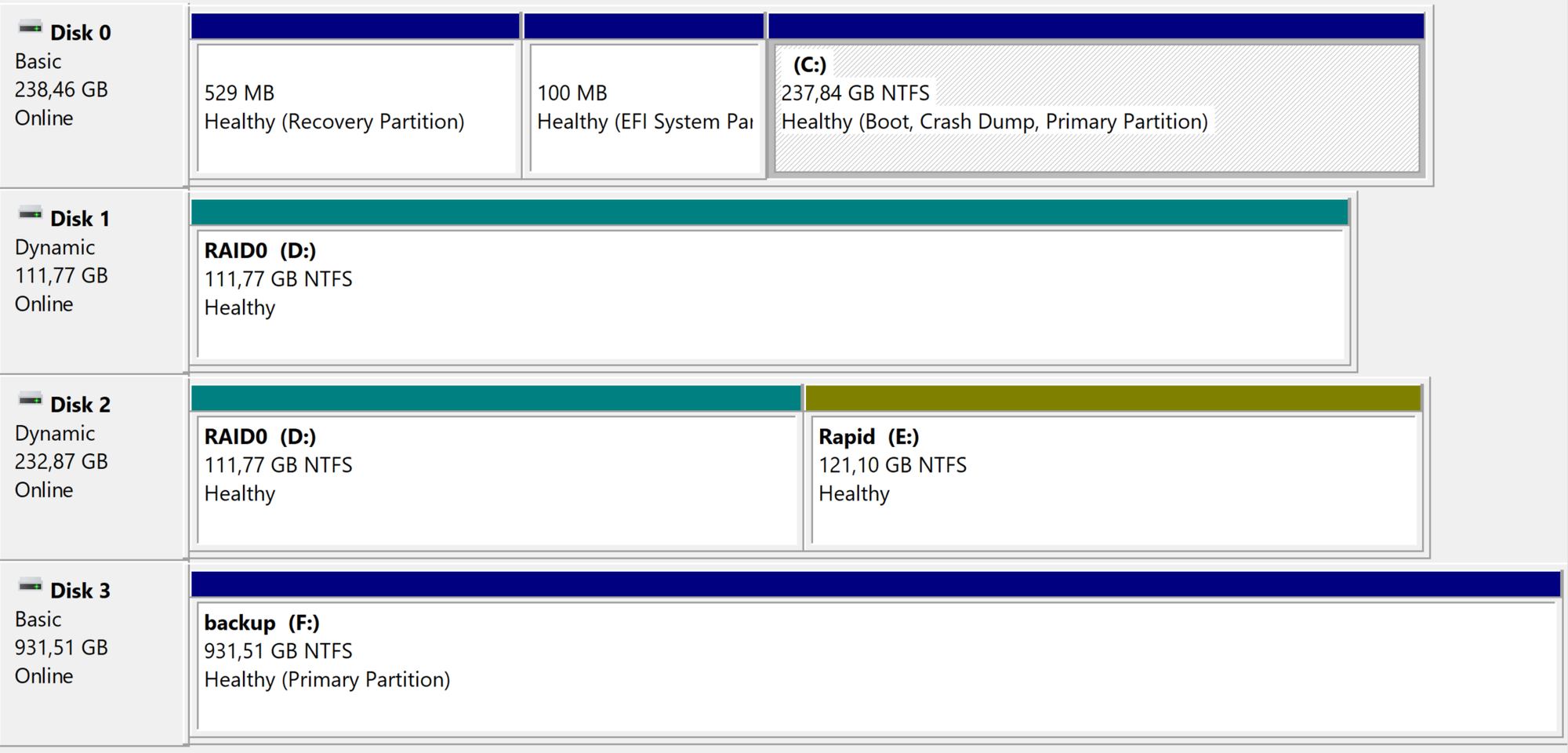

Disk management screenshot disk 0 is NVMe, Disk 1 and Disk 2 are on software RAID, Disk 3 is HDD:


Please advise.


Regards,


J

:)



Windows 10 Version 1909 Update Fails with error 0x8007001F

Dear all,

constantly getting the message that the update to Windows 10, Version 1909 fails. Detailed message:

• Funktionsupdate für Windows 10, Version 1909
• Fehler bei der Installation am ‎11.‎04.‎2020 – 0x8007001f

I couldn't find a solution in the community, yet. Thus I'm asking for support.

Thx in advance

Frank



Upgrade from Win7 fails - error 'Replicate_OC' 0x8007001F

Diagnosing upgrade failures is proving next to impossible- there are threads running on for days looking at the log files- which you are free to do of course.

Windows 10 Update keeps failing with error 0x8007001f - 0x20006
offers a pretty standard (i.e. non-specific, boring) set of approaches.

https://answers.microsoft.com/en-us/...b-a4c6cc8c1279
- more specific - note the comment about driver incompatibility.


One following answer is interesting too:

Here someone did an in-place repair of Win 7:
Windows 10 Upgrade error - 0x8007001F

Standard preparatory recommendations include checking the disk, running chkdsk, uninstalling 3rd party security, checking for free space. I assume you've done that.

I assume SP1 is installed at least- that's a requirement.

I don't know how you initiated the upgrade: sometimes may help if you perform a clean boot, then manually upgrade using the iso file without choosing to accept updates.


See:
Upgrade to Windows 10
- the section around 'Resolve Upgrade Errors' and links from linked pages.



Upgrade Windows 7 to 10 Error 0x8007001f



The partition layout of disk 0 (shown as disk 1 in Partition Manager) is non standard and was customized by the manufacturer. A normal Win 7 installation will have a layout:

1. 100MB System Reserved, NTFS format and marked as Active
2. C drive.

A normal Windows 10 installation will have:

1. 550MB Reserved partition, NTFS format and marked as Active
2. C drive.

Since you know how to use Minitool Partition Manager. Suggest to use it:

1. Create a bootable installation USB from the Windows ISO using: Rufus - Create bootable USB drives the easy way
2. Delete the 1st 2 partitions (102MB, 15GB) then create a 550MB partition, format as NTFS, label "System Reserved", assign a letter R, mark as Active
3. Move C drive next to the newly created 550MB. should look like the screen shot below, note H: drive should be C: in your case:



4. Boot up the USB created in step 1, on the first screen, press SHIFT+F10 to open the Admin command prompt then type:
   bcdboot C:\Windows /s R: /f BIOS =====> This will create the BCD to boot Windows and store in R: (550MB partition)
5. Reboot the PC then try to upgrade again

NOTE: It is advisable to create a backup image of the whole disk 0, just in case anything goes wrong then you can restore back before making any modification.
To create a backup image Use:
Macrium Reflect Free Edition x64
Macrium Reflect Free Edition x86
