  1. Windows Sandbox graphics driver


    Is DirectDraw acceleration supported by Windows Sandbox?

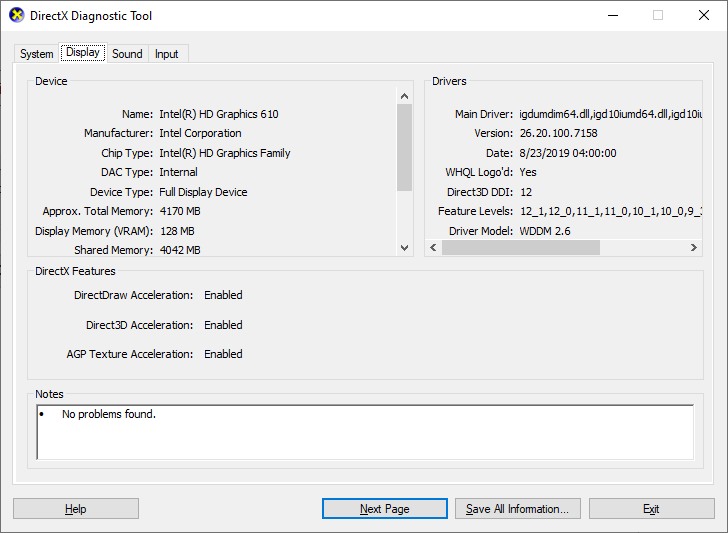

    I guess it should be supported if you graphics drivers support WDDM 2.5+. I have such support:

    Windows Sandbox graphics driver e97a25ce-5032-45f7-9c99-871ebf3d5383?upload=true.png

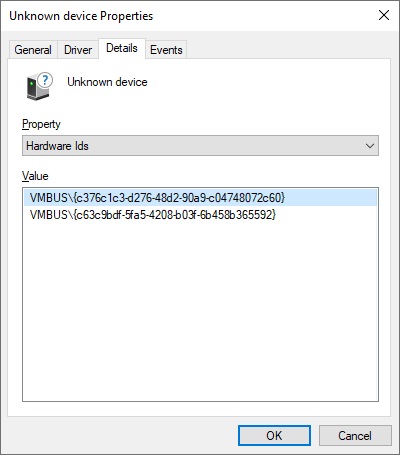

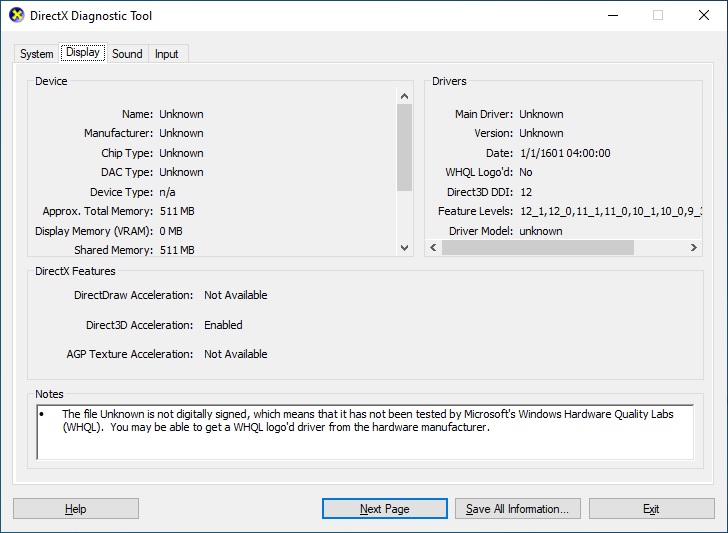

    But in sandbox graphics device is "Unknown" without acceleration and every application that is using DirectDarw is unbelievable slow...

    Windows Sandbox graphics driver 73158a34-f496-4aef-9053-9a897c337ae5?upload=true.jpg

    Windows Sandbox graphics driver cbfda0b6-a06d-4470-a1f6-ad6a04fe2024?upload=true.jpg

    Any suggestion how can I fix it?


    Simple_416, Sep 8, 2019
  2. Naresh_K Win User

    windows sandbox Not working


    Thank you for writing to Microsoft Community Forums.

    There is a possibility that the feature is corrupted or not set up properly. I would advise you to disable Windows Sandbox first and then enable it. Please follow the steps mentioned below:

    1. Open Control Panel.
    2. Then click on all Control Panel Items.
    3. Then click on Programs and features.
    4. Then on the left hand side, click on Turn Windows features on or off.
    5. Then uncheck the option: Windows Sandbox.
    6. Then restart your computer.
    7. After restart, please enable it and check if the sandbox is working.

    Also make sure that you meet all the requirements for Windows Sandbox.

    Naresh_K, Sep 8, 2019
  3. Graphics Driver for Windows 10


    Thank you for posting your query in Microsoft Community.

    I understand your concern, and we in Community will try to help you in the best possible way we can.

    Follow the below methods and check if it helps.

    Method 1:

    I suggest you update Graphic card drivers:

    • Press Windows key + X and click on
      Device manager.
    • Expand Display Driver from the list.
    • Right click on the Graphic driver and select
      update driver software.
    If the issue still persist follow method 2.

    Method 2:

    I suggest you to go to the manufacturer’s website of your graphic card and check for any updated drivers available there. If so, try to install them and check if it fix the issue.

    If no updated drivers available then try installing the available drivers in compatibility mode.

    Refer the steps:

    • Download the Drive from the manufacture’s website, Right click on the setup file and select Properties.

    • Click the compatibility tab, tick the box next to Run this program in compatibility mode for and select Windows.
    If the issue still persist, suggest you to please get in touch with our
    Xbox Support team through below link to resolve the issue:

    Our Xbox support team will assist you better in this regard.

    Hope the information helps, if you have any further queries, feel free to post. We are here to assist you.


    Guru Kiran
    Guru Kiran G, Sep 8, 2019
  4. Windows Sandbox graphics driver

    Windows Sandbox not enble

    Windows Sandbox not enble

    Windows Sandbox not appear in the start menu. I tried to enable it from "Turn Windows features on or off" but the Windows Sandbox appears in grey there and when I roll over it the message "Virtualization support is disabled in firmware" pop up. Please help
    on this issue.

    before installing Windows sandbox check to see if virtualization is enable by right clicking over taskbar and going to task manager then click the performance tab go down to Logical Processors under that is Virtualization which should say enabled,

    if not enabled virtualization in the bios refer to your computer guide for motherboard make and model,

    If Virtualization is enabled in the bios then you have issue with Windows 10 services under Administrative Tools.

    follow this below should get you going.

    For Windows 10 1903 sandbox wont start errors all you do is just restart the following service under Administrative tools

    Container Manager Services.

    then reopen sandbox should start up like normal.

    If it does not start up do the following below.

    If you have Hyper-V installed and Virtual disk is turned on under Administrative tools you must restart all these services

    1. Container Manager Services
    2. HV Host
    3. Virtual Disk
    4. Hyper-V Virtual Machine Manager
    5. Hyper-V Host Compute Service
    6. Network Virtualization Service

    Do this in the following order

    1. Right click over (Network Virtualization Service) click restart and wait.
    2. Right click over (Virtual Disk) click restart and wait.
    3. Right click over (Hyper-V Virtual Machine Manager) click restart and wait
    4. Right click over (Hyper-V Host Compute Service) click restart and wait
    5. Right click over (Container Manager Services) click restart and wait

    Check these services are still on

    Application Guard Container Service (If installed)

    Remote Procedure Call (RDC) (""This must be running as most of the others rely upon its function it should never be disabled"")

    Once they are checked start sandbox and it should open up if it does restart your computer to ensure the services are still functional are a restart of computer this should also be done if sandbox does not start up once these services are restarted
    and checked.

    Created By Eric O'Malley

    17th June 2019

    follow this guide if the sandbox program wont start or failures to open.

    Windows Sandbox failed to start

    A Work Around

    To get

    Windows Sandbox

    Working again



    Eric O’Malley


    Well I work out a solution to get Windows Sandbox going again it’s not the best solution but work around follow the steps below and hope it works for all of you guys.

    1. The first thing you have to do is turn off Windows Defender Random Folder Protection
      or the anti virus random folder protection.
    2. Next turn off Windows defenders Tamper protection Or the Anti-Virus Tamper protection
    3. Once that turn off Go to Control Panel open it
    4. Location Administrative Tools
    5. Next head to Services and open that
    6. Scroll down to Container Manager Services
    7. Turn off Container Manager Service only
    8. Leave service screen open but minimize it
    9. Next go to control panel location and open File Explorer Options
    10. In File Explorer Options Untick the following:

      • Don’t Show Hidden Files, Folders, or Drivers
      • Hide Empty Drivers
      • Hide Extensions Known Files Types
      • Hide Merge Conflicts
      • Hide Protected Operating Systems Files

    1. Now move File Explorer Options to one side of your screen
    2. Go back to Control Panel
    3. Locate and open Program and Features
    4. Go to Turn Windows Features on or Off
      open it

    5. Scroll down to Windows Sandbox
    6. Untick Windows Sandbox
    7. Click ok to uninstall Windows Sandbox
    8. Close off only the screen that removed Windows sandbox
    9. Next go to your main drive usually C: Drive
    10. Location ProgramData
      • We need to get to this location (C:\programData\Microsoft\Windows\Containters\Sandboxes)

    1. Even open it or expand ProgramData
    2. Locate Microsoft open it or expand
    3. Scroll down to Windows open it or expand
    4. Now go to the folder called Containers
      open it or expand
    5. Now you should see Sandboxes
      • You Should be at this location Now


    1. Now in that folder Sandbox is folder that looks like this

      • 4040f074-2ff6-471c-9f38-4836db85fff6
      • Inside it is sandbox.vhdx

    1. What we need do is delete all the strange folders keys that’s in


    1. If it does not delete just wait a few seconds and try again

    Caution do not delete the folders from recycle bin yet

    1. Next go to the folder below it called


    Repeat the steps you did at Sandboxes and delete the strange folder keys with its contents but do not delete what’s in recycle bin.

    1. Repeat the step you did at Sandboxes and delete the
      strange folder key with its contents

    2. If it does not delete just wait a few seconds and try again
    3. Now move the open explorer screen to one side of the screen
    4. Head back to control panel
    5. Locate and open Program and Features
    6. Go to Turn Windows Features on or Off
      open it

    7. Scroll down to Windows Sandbox
    8. This time re-tick Windows Sandbox and close and allow it to reinstall the sandbox
    9. Close only the install screen
    10. Go back to services and Restart Container Manager Service
    11. Leave Services screen open move it to once side again.
    12. We now head to Start then Settings
    13. Scroll until you find Windows
      Sandbox click it twice.
    14. Wait and see how the screen opens if it give you another error
      repeat this process
    15. When you open Windows Sandbox it should
      hang for 5 to 10 minutes without any error message
    16. What it’s doing is rebuilding its image then it opens back to what it was in default settings.
    17. Once you have sandbox reopened and its got the icons load close it pressing the
      red X
    18. Then reopen Windows Sandbox to see if it opens up again.
    19. If it does you fixed it.
    20. Now we can turn back on
      • Windows Defender Random Folder Protection
        or the anti virus random folder protection

      • Windows defenders Tamper protection Or the Anti-Virus Tamper protection

    1. Retest Windows sandbox will open again with the above
      turned on
    2. If it does the next thing is to restart your computer and
      Repeat the opening of Windows sandbox.
    3. Once all is well your right to continue
    4. You can delete the folders in your recycle bin too.

    Created by

    Eric O’Malley

    viennafiji, Sep 8, 2019
