Windows 10: Create Hyper-V Manager shortcut in Windows 10

How to: Create Hyper-V Manager shortcut in Windows 10

How to Create a Hyper-V Manager shortcut in Windows 10


The Windows 10 Pro, Enterprise, and Education editions include the Hyper-V virtualization technology. Hyper-V enables running virtualized computer systems on top of a physical host. These virtualized systems can be used and managed just as if they were physical computer systems, however they exist in virtualized and isolated environment. Special software called a hypervisor manages access between the virtual systems and the physical hardware resources. Virtualization enables quick deployment of computer systems, a way to quickly restore systems to a previously known good state, and the ability to migrate systems between physical hosts.

Programs and Features as Hyper-V Management Tools on any Windows OS with Hyper-V included. Hyper-V Platform does not need to be enabled in order to manage remote hosts.

This tutorial will show you how to create or download a Hyper-V Manager shortcut in Windows 10.


CONTENTS:

• Option One: To Download a Hyper-V Manager Shortcut
• Option Two: To Manually Create a Hyper-V Manager Shortcut

EXAMPLE: Hyper-V Manager









OPTION ONE [/i] To Download a Hyper-V Manager Shortcut
1. Click/tap on the Download button below to download the .zip file below.
Hyper-V_Manager_shortcut.zip

Download
2. Save the .zip file to your desktop.

3. Unblock the .zip file..

4. Open the .zip file, and extract (drag and drop) the shortcut to your desktop.

5. You can assign a keyboard shortcut to, or move this shortcut to where you like for easy use.

6. When finished, you can delete the downloaded .zip file if you like.





OPTION TWO [/i] To Manually Create a Hyper-V Manager Shortcut
1. Right click or press and hold on an empty area on your desktop, and click/tap on New and Shortcut.

2. Copy and paste the location below into the location area, and click/tap on Next. (see screenshot below)
%windir%\System32\mmc.exe virtmgmt.msc




3. Type Hyper-V Manager for the name, and click/tap on the Finish button. (see screenshot below)
*note You could name this shortcut anything you would like though.



4. Right click or press and hold on the new Hyper-V Manager shortcut, and click/tap on Properties.

5. Click/tap on the Shortcut tab, then click/tap on the Change Icon button. (see screenshot below)



6. In the line under "Look for icons in this file", copy and paste the location below, and press Enter. (see screenshot below)
%ProgramFiles%\Hyper-V\SnapInAbout.dll




7. Select the icon highlighted in blue above, and click/tap on OK. (see screenshot above)
*note You could use any icon that you would like instead though.

8. Click/tap on OK. (see screenshot below step 5)

9. You can assign a keyboard shortcut to, or move this shortcut to where you like for easy use.

That's it,
Shawn


Related Tutorials

• How to Setup and Use Hyper-V in Windows 10 for OS Virtualization
• How to Create Shortcut of Hyper-V Virtual Machine in Windows 8 and 10
• How to Create a Hyper-V Virtual Machine Connection shortcut in Windows 10

:)



Where is the Hyper V Manager, How to I start it ?

I am trying to setup an XP virtual Machine on Windows 10 Pro.

I followed the steps in Neil Peterson article of 5/9/2016.

System Requirements - done - ok

Install Hyper-V - done - ok

Create a Virtual Switch - skip

Create a Virtual Machine

Create a Virtual Machine with Hyper-V Manager

These steps walk through how to manually create a virtual machine and deploy an operating system to this virtual machine.

•
  In Hyper-V Manager, click Action > New >
  Virtual Machine to bring up the New


Uhhhhhhhhh - this step obviously implies one knows

1) Where the Hyper-V Manager is

2) How to start the Hyper-V Manager

Isn't that odd ?



Moving Hyper-V to Another Disk

1. Export the virtual machines to the drive where you want to move them (tutorial).
2. When all VMs have been exported, delete them in Hyper-V Manager.
3. When Hyper-V Manager is empty, not showing any VMs, import the previously exported VMs (tutorial). In Option One Step 6 of the tutorial, you need to select Register the virtual machine in-place, or if choosing Option Two in tutorial, select Step 2.

Easy!



Hyper V deativication

Hi Geoffrey,

Hyper-V lets you run an operating system or computer system as a virtual machine on Windows. Before proceeding in disabling
Hyper-V, please create a backup of your files for security purposes.

To disable Hyper-V, please follow the steps below:

• On the Cortana search box, type Turn Windows Features on or off and press
  Enter.
• Look for the Hyper-V folder.
• Uncheck the tick-box next to the main Hyper-V folder and click
  OK.
• Restart your PC.

Should you have further questions, please let us know.



Hyper-V Manager Unable to Connect to Remote Servers in Windows 10

I recently upgraded from Win 8.1 Enterprise to Win 10 Enterprise. I had Hyper-V Manager installed to connect to a few Hyper-V hosts running on Windows 8.x. After the upgrade on my machine, I can no longer connect to the remote Hyper-V hosts.

• All Machines are part of the same domain.
• This worked prior to the upgrade.
• Verified that all the Remote Administration and WinRM features were enabled in the firewall post upgrade.

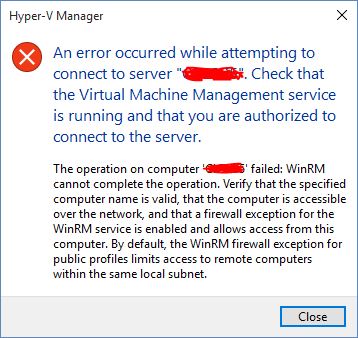

Here's the error I receive:



I've googled this a bit and tried a suggestion about running winrm quickconfig. That ran through it's process but did not resolve the issue.

Any help would be appreciated! I need to get access to manage these hosts through the Hyper-V MMC.

Thanks in Advance,

Doug



Hyper-V Manager opens Microsoft Management Console - Can't use VMs

Running an activate version of Windows 10 Pro 64 bit (v1709 build: 16299.309)

A few weeks ago I tried to run a VM on Hyper-V which previously worked fine. I clicked start, type Hyper-V Manager, right click and choose run as Administrator (as I typically do). It then opens Microsoft Management Console which is not what I want.

When I look at the shortcut target it's pointing to: %windir%\System32\mmc.exe which doesn't seem right.

I've tried turning off and turning back on Hyper-V using Windows Features on/off.

I've confirmed Hyper-V Host Compute service is Running and Hyper-V Virtual Machine Management is running (which they are).

I run vmconnect.ext as admin it shows the VMs and tries to start them but I get errors about a virtual port. I can't fix that because I can't get into Hyper-v manager.

Been trying to get this to work for weeks and about to scrap it for VirtualBox.

Any suggestions?
