Windows 10: Add Hub Selective Suspend Timeout to Power Options in Windows

How to: Add Hub Selective Suspend Timeout to Power Options in Windows

How to Add or Remove USB "Hub Selective Suspend Timeout" from Power Options in Windows


The USB Hub Selective Suspend Timeout setting in Power Options allows users to specify the idle timeouts in milliseconds for all USB hubs.

This tutorial will show you how to add or remove the Hub Selective Suspend Timeout under USB settings in Power Options for all users in Windows 8 and Windows 10.

*Warning You must be signed in as an administrator to add or remove this setting in Power Options.


CONTENTS:

• Option One: Add or Remove "Hub Selective Suspend Timeout" in Power Options using Command Prompt
• Option Two: Add or Remove "Hub Selective Suspend Timeout" in Power Options using REG file

EXAMPLE: "Hub Selective Suspend Timeout" in Power Options









OPTION ONE [/i] Add or Remove "Hub Selective Suspend Timeout" in Power Options using Command Prompt
1. Open an elevated command prompt.

2. Type the command below you want to use into the elevated command prompt, and press Enter.
(Add)
powercfg -attributes 2a737441-1930-4402-8d77-b2bebba308a3 0853a681-27c8-4100-a2fd-82013e970683 -ATTRIB_HIDE

OR

(Remove - default)
powercfg -attributes 2a737441-1930-4402-8d77-b2bebba308a3 0853a681-27c8-4100-a2fd-82013e970683 +ATTRIB_HIDE
3. You can now close the elevated command prompt if you like.





OPTION TWO [/i] Add or Remove "Hub Selective Suspend Timeout" in Power Options using REG file

*note The downloadable .reg files below will modify the DWORD value in the registry key below.

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Power\PowerSettings\2a737441-1930-4402-8d77-b2bebba308a3\0853a681-27c8-4100-a2fd-82013e970683

Attributes DWORD

1 = Remove
2 = Add


1. Do step 2 (add) or step 3 (remove) below for what you would like to do.


2. To Add "Hub Selective Suspend Timeout" to Power Options
A) Click/tap on the Download button below to download the file below, and go to step 4 below.

Add_Hub_Selective_Suspend_Timeout_to_Power_Options.reg

Download

3. To Remove "Hub Selective Suspend Timeout" from Power Options
*note This is the default setting.
A) Click/tap on the Download button below to download the file below, and go to step 4 below.

Remove_Hub_Selective_Suspend_Timeout_from_Power_Options.reg

Download
4. Save the .reg file to your desktop.

5. Double click/tap on the downloaded .reg file to merge it.

6. When prompted, click on Run, Yes (UAC), Yes, and OK to approve the merge.

7. You can now delete the downloaded .reg file if you like.

That's it,
Shawn


Related Tutorials

• How to Change Power Plan Settings in Windows 10
• How to Turn On or Off USB Selective Suspend in Windows 10
• How to Add or Remove 'USB selective suspend setting' from Power Options in Windows
• How to Add or Remove 'USB 3 Link Power Management' from Power Options in Windows

[fb]https://www.facebook.com/tenforums/posts/1129851437197235/fb]

:)



USB HUB

Hi,

Incompatible USB hub driver is one of the possible reasons why this issue is happening. We recommend uninstalling the USB Root Hub driver and see if it helps. Follow the stepes below:

• Open Device Manager.

• Double-click Universal Serial Bus controllers to expand.

• Right-click USB Root Hub, then click Properties.

• Go to the Driver tab.

• Click Uninstall.

• Restart your computer.


Note: Restarting your computer will automatically reinstall a generic driver for your computer. Also, we suggest connecting your USB hub while performing the steps.

If the issue still persists, let's disable the USB selective suspend settings thru Power Options to resolve the issue. Follow the steps below:

• Type Power Options in the search box, then press Enter.
• Locate USB settings > USB selective suspend settings.
• Select Disable.

Keep us in the loop with the result.



Unable to disable USB Selective Suspend


Try this:

Go into your device manager and under Universal Serial Bus Controllers. Under there you will see USB hubs. In the properties for these hubs you will see a power management tab. Go under that tab and uncheck the option that allows the computer to turn the hubs off.



USB selective suspend settings not available?

Hello Grant,

To answer your question about USB Selective Suspend Settings, follow the steps below:

• Press Windows + X.
• Choose Power Options.
• Select Choose when to turn off the display.
• Open Change advanced power settings.
• Expand USB settings and USB selective suspend setting.
• Select Enabled (default) or Disabled.
• Click Apply, then OK.

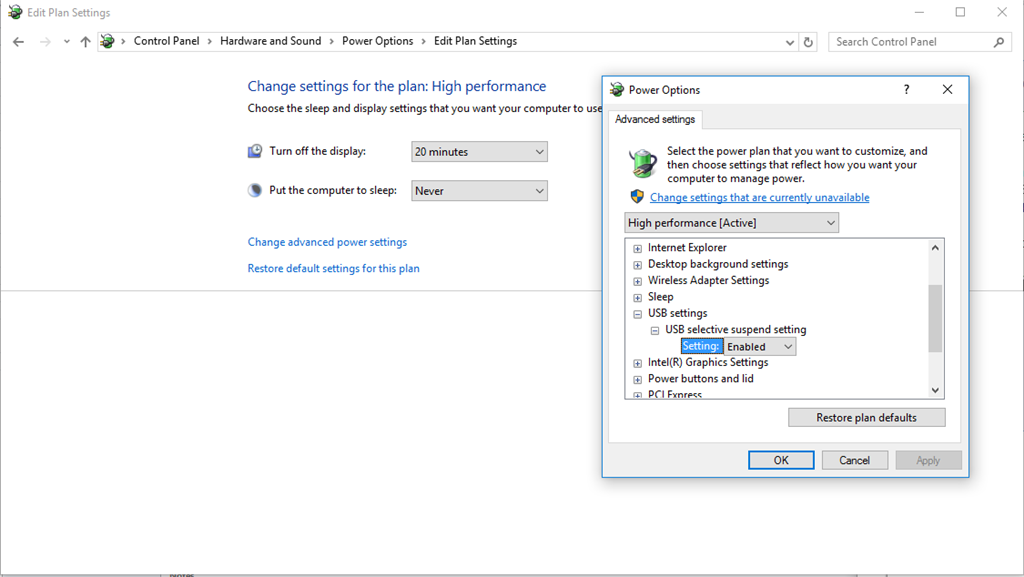

Please check out the image below for your reference:





Keep us informed about the outcome.

Thank you.



Windows 10, unable to disable USB selective suspend

Upon upgrading to Windows 10, I have noticed that my external USB device powers off after a few minutes of inactivity.

I have researched this, and already changed the following setting:

For all 4 power plans listed on my computer, I have gone to "USB settings", and selected "disable" for "USB selective suspend setting" for both "on Battery" and "Plugged in" for all 4 power plans.

Device manager: "USB Serial Bus Controllers", I have made sure all USB items that have a "Power Management" tab are unchecked for "Allow the computer to turn off this device to save power".

The issue continues, the USB device still turns off after a few minutes of inactivity. This happens on 2 separate Windows 10 machines, and never happened on the same machine running Windows 7, before the upgrade to Windows 10.

Are there any other settings that I need to change to disable the USB selective suspend in Windows 10?

Is there a registry setting where I can simply change the timeout period to some other timeout value, i.e. 60 minutes?



USB Selective Suspend is not working

Hi,

I am Ganesh Gandhi, an Independent Advisor. I am here to work with you on this problem.

I suggest to post this under "Sleep and Power on/off" or "Windows Settings."

Also refer this for Windows USB Selective Suspend:

https://docs.microsoft.com/en-us/windows-hardwa...
