Windows 10: Add or Remove Turn off hard disk after from Power Options in Windows

How to: Add or Remove Turn off hard disk after from Power Options in Windows

How to Add or Remove 'Turn off hard disk after' from Power Options in Windows 10

The NVMe.

Having your HDDs automatically turned off after being idle can help save energy and extend a PC's battery life.

When you or anything tries to access a HDD that has been turned off, there will be a delay of a few seconds as the HDD automatically spins back up and is turned back on before being able to access it.

This tutorial will show you how to add or remove the Turn off hard disk after setting under Hard disk in Power Options for all users in Windows 7, Windows 8, and Windows 10.

*Warning You must be signed in as an administrator to be able to add or remove this setting in Power Options.


CONTENTS:

• Option One: Add or Remove "Turn off hard disk after" in Power Options using Command Prompt
• Option Two: Add or Remove "Turn off hard disk after" in Power Options using REG file

EXAMPLE: "Turn off hard disk after" in Power Options









OPTION ONE [/i] Add or Remove "Turn off hard disk after" in Power Options using Command Prompt
1. Open an elevated command prompt.

2. Type the command below you want to use into the elevated command prompt, and press Enter.
(Add - default)
powercfg -attributes SUB_DISK 6738e2c4-e8a5-4a42-b16a-e040e769756e -ATTRIB_HIDE

OR

(Remove)
powercfg -attributes SUB_DISK 6738e2c4-e8a5-4a42-b16a-e040e769756e +ATTRIB_HIDE
3. You can now close the elevated command prompt if you like.





OPTION TWO [/i] Add or Remove "Turn off hard disk after" in Power Options using REG file

*note The downloaded .reg files below will modify the DWORD value in the registry key below.

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Power\PowerSettings\0012ee47-9041-4b5d-9b77-535fba8b1442\6738e2c4-e8a5-4a42-b16a-e040e769756e

Attributes DWORD

1 = Remove
2 = Add


1. Do step 2 (add) or step 3 (remove) below for what you would like to do.


2. To Add "Turn off hard disk after" to Power Options
*note This is the default setting.
A) Click/tap on the Download button below to download the file below, and go to step 4 below.

Add_Turn_off_hard_disk_after_to_Power_Options.reg

Download

3. To Remove "Turn off hard disk after" from Power Options
A) Click/tap on the Download button below to download the file below, and go to step 4 below.

Remove_Turn_off_hard_disk_after_from_Power_Options.reg

Download
4. Save the .reg file to your desktop.

5. Double click/tap on the downloaded .reg file to merge it.

6. When prompted, click/tap on Run, Yes (UAC), Yes, and OK to approve the merge.

7. You can now delete the downloaded .reg file if you like.


That's it,
Shawn


Related Tutorials

• How to Change Power Plan Settings in Windows 10
• How to Turn Off Hard Disk After Idle in Windows 10
• How to Add or Remove 'Hard disk burst ignore time' from Power Options in Windows
• How to Add 'AHCI Link Power Management - HIPM/DIPM' to Power Options in Windows 10
• How to Add or Remove 'AHCI Link Power Management - Adaptive' from Power Options in Windows
• How to Add or Remove 'SEC NVMe Idle Timeout' from Power Options in Windows 10

:)



Remove spare hard disk as system disk

Thank you for your reply.

There's a possibility that your HDD was detected as OS drive during the Windows installation. To remove your HDD as system disk, we suggest reformatting it. To do so, please follow the steps below:

• Open Disk Management.
• Right-click on your HDD, then select Format.
• On the Format windows, type your preferred Volume label,
  File system (NTFS is recommended), Allocation unit size (leave as Default).
• Check the Perform a quick format option, then click
  OK.

Note: Please back up your files before reformatting the drive.

Feel free to post back should you need further help.



Power options - SSD settings

• Go to Control Panel - Power Options
• Select your current Power Plan and click 'Change Plan Settings'
• Click 'Change Advanced Plan Settings
• The top setting - Hard Drive - 'Turn off hard disk after'
• Set both battery and plugged in to 0 (this is never stop!)



Turning Off Hard Disk

If I set my power options to:
Turn off Hard Disk
(after x amount of minutes)

Turn off Moniter
(also after so many minutes)

What is the difference between that and setting the pc to sleep mode?

I ask because a number of times, coming out of sleep ... it doesn't!

The HD will click and then nothing!
Takes a hard shutdown and reboot to get running again!

Believe me, I've done every work-a-round, (for the last six months) and tried every suggestion in trying to fix this headache and nothing has worked!

Searching, this appears to be a problem with Windows 10 that a lot of folks have been having.
Some have solved the problem while others have not.

Seems that no one solution is a fix for everyone.

I've disabled hybrid and hibernate using only sleep.
Re-enabled hibernate with sleep disabled ... but the problem still exists!

And yes, I've run every chk disk and troubleshooter that I can find and ... nothing!


I figure that allowing the disk to go into idle and having the monitor shut down is the only step that I have left?

My concern is .. I don't want to shut down the pc every time I have something else that I need to do but ... I also don't want to risk something like a cooling fan going bad and my hard disk burning up when I'm not around!

Thanks in advance everyone!!

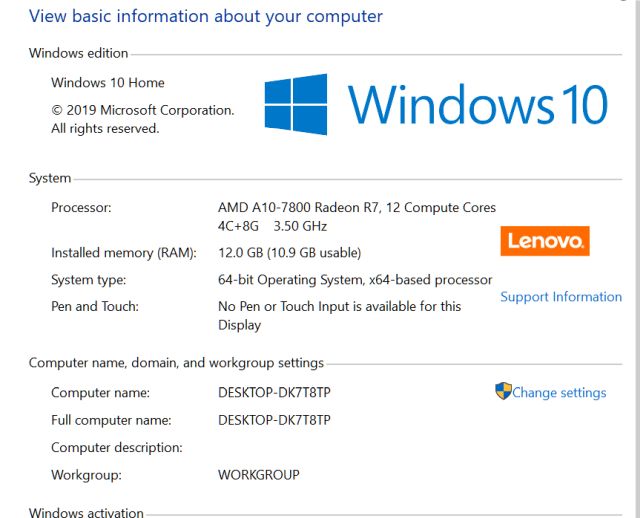

This is a snapshot of my system ...



Hard disk won't stay alive

Hi,

Conflicts with the power options is one of the possible reasons why your hard disk shuts down every five minutes. For us to assist you better, kindly answer the following questions:

• Which Version and OS Build number of Windows 10 is currently installed? To check, press the
  Windows key, type winver, and press the
  Enter key.
• Is this an internal hard disk or an external hard disk?

Meanwhile, you can try to use the Power troubleshooter to resolve the issue. Windows 10 has a built-in troubleshooter to check and fix issues with the Power options. You can follow the steps below:

• Press Windows key + X, select Control
  panel.
• Change the view by option on the top right to
  Large icons.
• Click on troubleshooting and click on the view all option on the left panel.
• Run the Power troubleshooter.

We are looking forward to your response.



Computer hangs (crashes) after automatically turning off monitors

We appreciate your response. Our next step is to make sure that Turn off hard disk option is set to Never by following the steps below:

• Go to Power Options again> Click Change Plan Settings.
• Choose Change Advanced Settings > Expand Hard disk.
• Expand Turn Off hard disk after > Set to
  Never.

Keep us updated with the result.
