    Turn On or Off BitLocker for Fixed Data Drives in Windows 10


    How to: Turn On or Off BitLocker for Fixed Data Drives in Windows 10

    How to Turn On or Off BitLocker for Fixed Data Drives in Windows 10

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]
    Information You can use BitLocker Drive Encryption to help protect your files on an entire drive. BitLocker can help block hackers from accessing the system files they rely on to discover your password, or from accessing your drive by physically removing it from your PC and installing it in a different one. You can still sign in to Windows and use your files as you normally would.

    New files are automatically encrypted when you add them to a drive that uses BitLocker. However, if you copy these files to another drive or a different PC, they're automatically decrypted.

    BitLocker can encrypt the drive Windows is installed on (the removable data drive (such as an external hard drive or USB flash drive).

    You can choose how you want to unlock an encrypted data drive: with a password or a smart card. For fixed data drives, you can also set the drive to automatically unlock when you unlock the PC, if you prefer, as long as the operating system drive is BitLocker-protected.

    This tutorial will show you how to turn on or off BitLocker to encrypt or decrypt a fixed data drive in Windows 10.

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]
    Note BitLocker Drive Encryption is only available in Windows 10 Pro, Windows 10 Enterprise, and Windows 10 Education editions.

    CONTENTS:
    • Option One: To Turn On BitLocker for a Fixed Data Drive in BitLocker Manager
    • Option Two: To Turn Off BitLocker for a Fixed Data Drive in BitLocker Manager
    • Option Three: To Turn Off BitLocker for a Fixed Data Drive in Command Prompt
    • Option Four: To Turn Off BitLocker for a Fixed Data Drive in PowerShell

    EXAMPLE: Enter password to unlock data drive encrypted by BitLocker

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]







    OPTION ONE [/i] To Turn On BitLocker for a Fixed Data Drive in BitLocker Manager
    1. If you like, set a default encryption method (XTS-AES or AES-CBC) and cipher strength (128 bit or 256 bit) you want used by BitLocker. BitLocker Drive Encryption uses AES-CBC 128 bit by default for fixed data drives.

    2. Do step 3, step 4, or step 5 below for how you would like to manage BitLocker.

    3. Right click or press and hold on the fixed data drive (ex: G: ) you want to encrypt, click/tap on Turn on BitLocker, and go to step 6 below. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    4. Select the fixed data drive (ex: G: ) you want to encrypt, click/tap on the "Drive Tools" Manage tab, click/tap on the BitLocker button in the ribbon, click/tap on Turn on BitLocker, and go to step 6 below. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    5. Open the Control Panel (icons view), and click/tap on the BitLocker Drive Encryption icon.
    A) Expand open the fixed data drive (ex: G: ) you want to encrypt under Fixed data drives, click/tap on Turn on BitLocker, and go to step 6 below. (see screenshot below)


    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    6. Choose how (password, smart card, or automatically) you want to unlock this drive, and click/tap on Next. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]
    Note The Automatically unlock this drive on this computer option will only be available if the operating system drive has already been encrypted by BitLocker.

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    7. Select how (Microsoft account, USB, file, and/or print) you want to back up your BitLocker recovery key for this drive, and click/tap on Next when finished. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]



    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]
    Note Microsoft account = This option is only available when you are signed in to Windows 10 with a Microsoft account. It will save the BitLocker recovery key to your OneDrive account online at https://onedrive.live.com/recoverykey.

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    USB flash drive = This option will save the BitLocker recovery key to a selected USB flash drive.

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    File = This option will save the BitLocker recovery key .TXT file to a location you select.

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]


    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    Print = This option will print the BitLocker recovery key to the selected printer.

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]


    8. Select (dot) how much of your drive to encrypt right now, and click/tap on Next. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]
    Note It is recommended to select Encrypt entire drive.

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    9. Select (dot) which encryption mode to use, and click/tap on Next. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]
    Note If you did step 1 above to set a default encryption method and cipher strength, then you will not have this setting available since BitLocker will use what you set in step 1 instead.


    New encryption mode (XTS-AES 128-bit) = Select this mode if this is a fixed drive or if this drive will only be used on devices running at least Windows 10 (version 1511) or later.

    Compatible mode (AES-CBC 128-bit) = Select this mode if this is a removable drive that you're going to use on an older version of Windows (ex: Vista, Windows 7, or Windows 8/8.1).

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    10. Click/tap on Start encrypting when ready. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    11. The fixed data drive will now start encrypting. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]
    Note This could take a long time to finish depending on the size of the drive and how much data on the drive is being encrypted.

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    12. When encryption has finished, click/tap on Close. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]






    OPTION TWO [/i] To Turn Off BitLocker for a Fixed Data Drive in BitLocker Manager
    1. If you have not already, unlock the fixed data drive encrypted by BitLocker.

    2. Do step 3, step 4, or step 5 below for how you would like to manage BitLocker.

    3. Right click or press and hold on the encrypted fixed data drive (ex: G: ), click/tap on Manage BitLocker, and go to step 6 below. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    4. Select the encrypted fixed data drive (ex: G: ), click/tap on the "Drive Tools" Manage tab, click/tap on the BitLocker button in the ribbon, click/tap on Manage BitLocker, and go to step 6 below. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    5. Open the step 6 below.

    6. Expand open the encrypted fixed data drive (ex: G: ) under Fixed data drives, and click/tap on Turn off BitLocker. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    7. Click/tap on Turn off BitLocker to confirm. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    8. The fixed data drive will now start decrypting. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]

    9. When decryption has finished, click/tap on Close. (see screenshot below)

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]






    OPTION THREE [/i] To Turn Off BitLocker for a Fixed Data Drive in Command Prompt
    1. Open an elevated command prompt.

    2. Type the command below into the elevated command prompt, and press Enter. (see screenshot below)


    *Arrow manage-bde -off <drive letter>:


    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]
    Note Substitute <drive letter> in the command above with the actual drive letter of the encrypted drive you want to decrypt.

    For example: manage-bde -off G:

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]
    Tip You can check the status of BitLocker for the drive at anytime.

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]






    OPTION FOUR [/i] To Turn Off BitLocker for a Fixed Data Drive in PowerShell

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]
    Note To see more Disable-BitLocker command usage options, see: Disable-BitLocker - Microsoft Docs

    1. Open an elevated Powershell.

    2. Type the command below into the elevated PowerShell, and press Enter. (see screenshot below)


    *Arrow Disable-BitLocker -MountPoint "<drive letter>:"


    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]
    Note Substitute <drive letter> in the command above with the actual drive letter of the encrypted drive you want to decrypt.

    For example: Disable-BitLocker -MountPoint "F:"

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]
    Tip You can check the status of BitLocker for the drive at anytime.

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 [​IMG]



    That's it,
    Shawn


    Related Tutorials

    :)

    Brink, Jun 12, 2017
    #1
  2. Paola Gar Win User

    Need to turn off Bitlocker to install Windows 10

    Hi,

    We suggest doing the following steps again to resolve the issue. To complete the procedure, make sure that you have the following information:

    • You must be able to provide administrative credentials.
    • The drive must be BitLocker-protected.
    To suspend BitLocker Drive Encryption on an operating system drive, please follow the steps below:

    • Click Start, click Control Panel, click
      System and Security, and then click BitLocker Drive Encryption.
    • Click Suspend Protection for the operating system drive.
    • A message is displayed, informing you that your data will not be protected while BitLocker is suspended and asking if you want to suspend BitLocker Drive Encryption.
    • Click Yes to continue and suspend BitLocker on the drive.

    Let us know how it goes.

    Paola Gar, Oct 26, 2019
    #2
  3. Activate Bitlocker for data drive partition

    Hi,

    Welcome to Microsoft Community and thank you for your interest in Windows 10.

    BitLocker
    Drive Encryption is one of the best security tools of Windows operating system. This feature of
    Windows 10 safeguards your stored data in fixed or removable drives of your storage system. When you turn on
    BitLocker it saves data on any drive and encrypt it automatically. When you encrypt drive, it
    protects everything with passwords on that drive whether it is file or document. In today’s
    Windows 10 tutorial, we will take you through Encrypt Drive Partition using Bitlocker process with
    BitLocker which will support your system in protecting its data.

    Get Into BitLocker Drive Encryption Window in Windows 10


    To Encrypt Drive Partition using Bitlocker you need to access BitLocker Encryption Window First. For this,

    • Open Cortana Search.
    • Type BitLocker in the search field.
    • And in the search results select Manage BitLocker option.
    • BitLocker
      Drive Encryption window pops up on your screen.
    Hope this information was helpful and do let us know if you need further assistance. We will be glad to assist.

    Karthicka_R, Oct 26, 2019
    #3
  4. rda62 Win User

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10

    How to enable Bitlocker for Fixed Drives?

    Hi All,

    I'm on Windows 10 Pro, Bitlocker (without TPM) is enabled and working for Removable drives, as well as the OS Drive.

    I have an additional 2TB internal SATA drive that Bitlocker does not see. I do not get the option to enable Bitlocker, in the right click context menu for the drive.

    If I go to Manage Bitlocker, the drive is not listed as a fixed data drive. It's not listed at all.

    There is nothing wrong with the drive itself. In its current unencrypted state, I have data stored on it, and can access, read and write to all of the drives contents.

    I've checked through the bitlocker group policy options, and I've googled this to death. Any help, short of a format/reload would be greatly appreciated.

    rda62, Oct 26, 2019
    #4
  5. BitLocker Encrypted Hard Drive to MAC

    Hi,



    Thank you for posting your query in Microsoft Community. I regret the inconvenience caused to you. Let me help you.



    I suggest you to perform below mentioned steps to disable BitLocker.

    To disable BitLocker I would suggest you try the following steps and see if it helps.


    • Press Windows key + X and click on
      Control Panel.

    • Change View by from Category
      to Large Icons/Small Icons.

    • Click on BitLocker Drive Encryption and click on
      Turn BitLocker Off.

    • Follow on screen instructions. Click on Decrypt the Drive
      when the message appears.
    I would suggest you click on the link below and refer the following article.

    Scenario 12: Turning Off BitLocker Drive Encryption (Windows 7)

    Scenario 12: Turning Off BitLocker Drive Encryption (Windows 7)

    (You can refer the steps in the above link as they are applicable for Windows 10 as well)



    Check if it helps.



    I hope the information helps. Please keep us posted on the issue. We will be happy to assist you accordingly.

    Thank you.

    Aswin_Anand, Oct 26, 2019
    #5
  6. mcraygsx Win User
    Windows 8.1 PRO unable to unlock Bitlocked drive

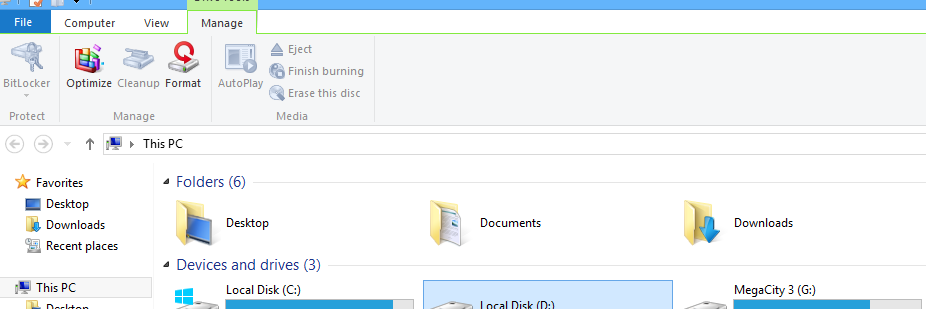

    As you can see BitLocker Option is not highlighted for selection. It's like Windows does not even recognize this drive as a locked drive. And this drive does contain lot of Data.

    Turn On or Off BitLocker for Fixed Data Drives in Windows 10 QDhU4Ht.png

    mcraygsx, Oct 26, 2019
    #6
Thema:

Turn On or Off BitLocker for Fixed Data Drives in Windows 10

Loading...
  1. Turn On or Off BitLocker for Fixed Data Drives in Windows 10 - Similar Threads - Turn Off BitLocker

  2. Turn On or Off Auto-unlock for BitLocker Encrypted Data Drives in Windows 10

    in Windows 10 News
    Turn On or Off Auto-unlock for BitLocker Encrypted Data Drives in Windows 10: [ATTACH] [ATTACH]You can turn BitLocker Auto-unlock for fixed or removable Data Drives, on or off using BitLocker Manager, Command Prompt, and PowerShell. In this post, we will show you how you can enable or disable auto-unlock for a fixed or removable [...] This post Turn...
  3. Unlock BitLocker Encrypted Fixed or Removable Data Drive in Windows 10

    in Windows 10 News
    Unlock BitLocker Encrypted Fixed or Removable Data Drive in Windows 10: [ATTACH] [ATTACH]BitLocker Drive Encryption is a data protection feature that integrates with the OS, Fixed & Removable drives that addresses threats of unauthorized access. In this post, we show you how to use password or recovery key to unlock a drive [...] This post...
  4. TURN ON BITLOCKER DRIVE ENCRYPTION

    in Windows 10 Customization
    TURN ON BITLOCKER DRIVE ENCRYPTION: hi, How and where to enable bitlocker to encrypt system drive. And make a copy of the bitlocker recovery key? concerned, https://answers.microsoft.com/en-us/windows/forum/all/turn-on-bitlocker-drive-encryption/86a9cedd-8a30-47a6-bea1-ed58984a753f
  5. How to turn BitLocker back on after turning it off to access external drive

    in AntiVirus, Firewalls and System Security
    How to turn BitLocker back on after turning it off to access external drive: This seems like something that should be incredibly easy, but it isn't. I have a BitLocker protected external drive connected to my computer. When I unlock it in order to access it, I do not see any way to lock it up again other than to physically disconnect and reconnect...
  6. How to turn BitLocker back on after turning it off to access external drive

    in AntiVirus, Firewalls and System Security
    How to turn BitLocker back on after turning it off to access external drive: This seems like something that should be incredibly easy, but it isn't. I have a BitLocker protected external drive connected to my computer. When I unlock it in order to access it, I do not see any way to lock it up again other than to physically disconnect and reconnect...
  7. Deny Write Access to Fixed Data Drives not Protected by BitLocker

    in Windows 10 Tutorials
    Deny Write Access to Fixed Data Drives not Protected by BitLocker: How to: Deny Write Access to Fixed Data Drives not Protected by BitLocker Allow or Deny Write Access to Fixed Data Drives not Protected by BitLocker in Windows You can use BitLocker Drive Encryption to help protect your files on an entire drive. BitLocker can help block...
  8. Turn On or Off BitLocker for Removable Data Drives in Windows 10

    in Windows 10 Tutorials
    Turn On or Off BitLocker for Removable Data Drives in Windows 10: How to: Turn On or Off BitLocker for Removable Data Drives in Windows 10 How to Turn On or Off BitLocker for Removable Data Drives in Windows 10 [img] Information You can use BitLocker Drive Encryption to help protect your files on an entire drive. BitLocker can help...
  9. Turn On or Off BitLocker for Operating System Drive in Windows 10

    in Windows 10 Tutorials
    Turn On or Off BitLocker for Operating System Drive in Windows 10: How to: Turn On or Off BitLocker for Operating System Drive in Windows 10 How to Turn On or Off BitLocker for Operating System Drive in Windows 10 [img] Information You can use BitLocker Drive Encryption to help protect your files on an entire drive. BitLocker can...
  10. Turn On or Off Auto-unlock for BitLocker Drive in Windows 10

    in Windows 10 Tutorials
    Turn On or Off Auto-unlock for BitLocker Drive in Windows 10: How to: Turn On or Off Auto-unlock for BitLocker Drive in Windows 10 How to Turn On or Off Auto-unlock for BitLocker Drive in Windows 10 [img] Information BitLocker can encrypt the drive Windows is installed on (the removable data drive (such as an external hard drive...
